High speed fin machine from China

Machine Overview The high-speed fin machine is a specialized equipment for producing cooling products. Here, we mainly introduce two types of machines: one for producing HVAC heat exchangers and the other for producing plate and bar heat exchangers. The HVAC fin press machine is a high-speed stamping machine that consists of a feeder, lubrication device, stamping machine, mold, and receiving machine. Its fastest production speed is approximately 200-260 times per minute. The plate and bar fin-making machine is a small device that produces fins of different shapes, such as sawtoo...

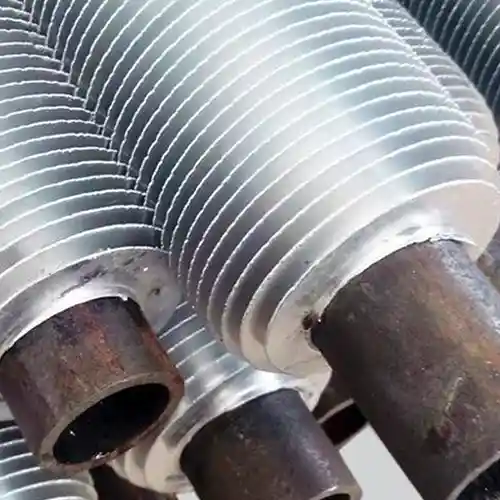

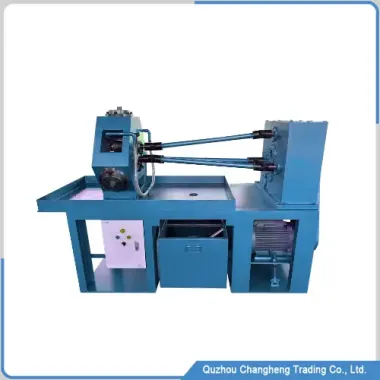

Finned tube Machine Manufacturer from China

Machine Overview This finned tube machine can produce low-finned tubes, 2-metal tubes, and single-metal tubes. These tubes are mainly used in industrial cooling, the petroleum industry, ships, etc. The main driving force of this device comes from an 11kw motor, which drives the gears to output strong power at a variable speed. The roller mold of this machine is through a universal joint connection, and users can easily adjust the spacing between three sets of rollers to produce fin tubes of different diameters, The adjustment screw has a scale display, and engineers can quic...

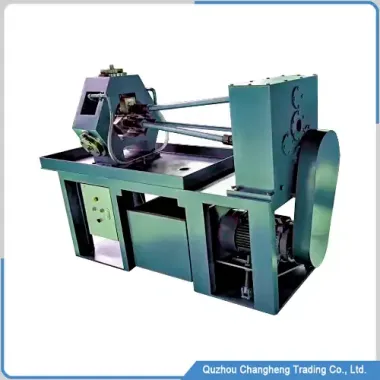

Low fin tube machine supplier

Machine Overview The low-fin tube machine is the equipment used in the heat exchanger industry. It is driven by an electric motor, which rotates the spindle and rolls the mold to extrude metal tubes into low-fin tubes.This device has a sturdy structural design, with three rollers squeezing to control the low fin's quality effectively. Additionally, the device has a built-in coolant circulation system to effectively cool the heat generated by the friction between the roller mold and the metal tube.The mold of the low-fin tube production equipment can be freely replaced,...

Spiral tube machine

Machine Overview The spiral tube machine is mainly driven by an 11kva motor, which provides strong power to rotate three sets of roller molds and extrude metal tubes into a spiral shape. This tube type is widely useing in heat transfer solutions, such as power generation, petroleum and weather, chemical industry, etc. The equipment has an independent coolant circulation device to ensure that the roller mold always maintains the best state during use, extending the service life of the mold, The replaceable design of the spiral roller mold on this machine allow...

Fin stamping die for sale

Fin Die Overview Fin stamping die play a crucial role in the HVAC fin stamping industry. They are not only a high-performance innovative tool, but also renowned for their excellent tolerance accuracy in the industry. The design of these Fin dies allows for adjustable stretching height when stamping thinner metal materials, which means that various fins of different heights can be produced during the production process to meet the various needs of different customers In terms of functionality, these fin stamping tools are very flexible and can produce various type...

Stainless steel fin machine of heat exchanger

Machine Overview The stainless steel fin machine is a highly automated equipment that can produce various types of high-precision fins, such as serrated and wavy types. This type of machine is usually equipped with a PLC touchscreen control system to achieve visual operation, allowing operators to intuitively understand the operation status and production process of the equipment. Stainless steel fin machine Features 1, High precision: This fin machine can produce high-precision fins, ensuring that the quality and performance of the product meet the standa...

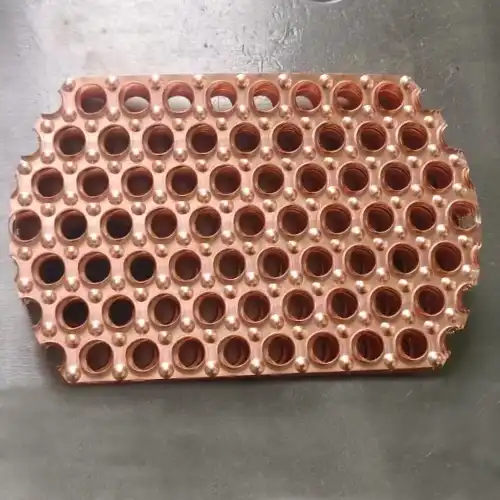

Fin punching die for shell and tube heat exchanger

Fin punching die outline This is a fully automatic and continuous production fin punching die, which is the key mold for making aluminum or copper fins of tube and shell heat exchangers, It is composed of multiple independent small molds combined to form a complete automatic mold, This type of mold has many advantages, such as adaptability to high-speed production, ultra-long service life, and simple combination arrangement to produce different sizes Due to the many sizes of the diameters of tube and shell heat exchangers in industrial applications, in order to ...

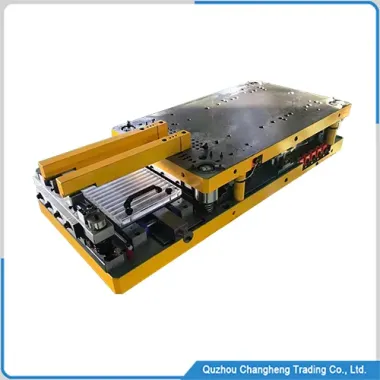

Progressive die stamping | Fin die factory

With the rapid development of modern industry, the production of aluminum fins for condensers and heat exchangers has become a highly automated and efficient industry. In this process, the continuous production of progressive die stamping has become an indispensable tool operational principle Progressive die stamping is a mold for producing aluminum foil fins for condensers, which can produce high-precision and high-quality fins on continuous production lines. This type of mold has an automatic feeding tool. During normal and rapid production, the aluminum foil c...

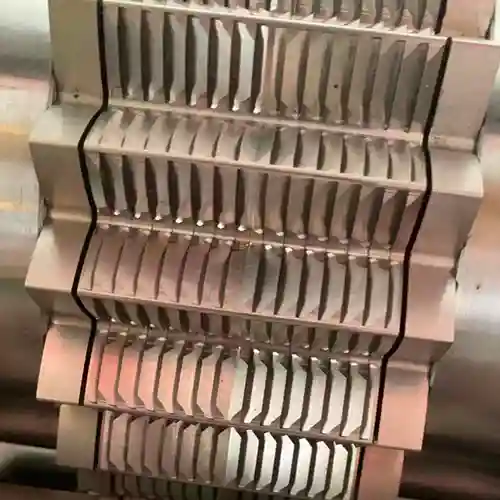

Louvre fin machine make radiator and condenser fins

A new type of louvre fin production equipment, the Louvre Fin Machine, has been developed to meet market demand. This machine is mainly used for producing louver fins for automotive engine radiators and condensers in automotive air conditioners, The main features of this equipment include fast production speed, precise length cutting, fully automated unmanned production, and the ability to produce louver fins of different widths using a combination of roller blades. louvre fin machine characteristic 1. The fast production speed of the Louvre Fin Mach...

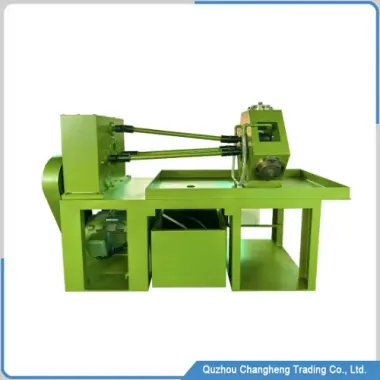

Extruded finning Machine of industrial heat exchangers

Machine Outline This extruded finning Machine is mainly suitable for manufacturing key fin tube parts such as industrial heat exchangers, coolers, and heat dissipation equipment. Compared with ordinary equipment, the finned tubes produced by the extrusion fin machine have higher strength because this equipment adopts rolling technology, and the aluminum material is forcibly forming and attached to the outside of the metal tube through a mold. During this process, the metal is extruded into the desired fin shape while keeping the inner tube's size and shape unchan...

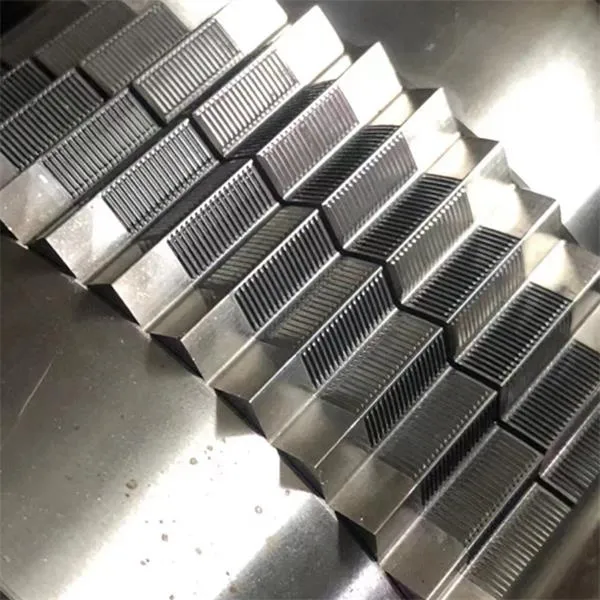

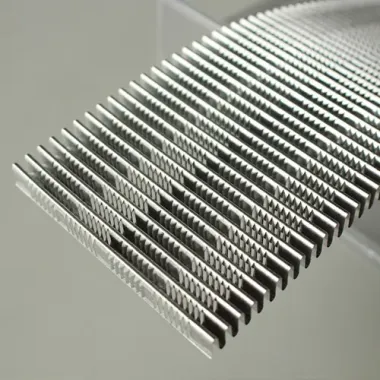

Radiator fin making machine for sale

The Radiator fin-making machine is specifically designed to produce radiator fins.This fin machine plays a vital role in the manufacturing process of radiators for automobile and truck engines because it can produce fins for radiators, as well as fins for condensers, intercoolers, and evaporators. Working principle The working principle of a radiator fin machine is to roll metal foil into the desired fin shape through a high-speed rotating blade. Machines typically have a series of rotating blade rollers, each corresponding to the shape of a radiator fin. When the metal foil ma...

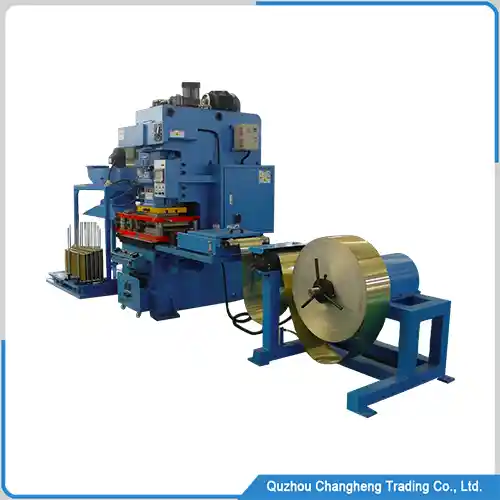

Fin press machine Fully automatic production line

Machine Overview The fin press machine is an efficient production equipment mainly uses for the automated manufacturing of parts for heat exchangers, air conditioners, and refrigerators. With an astonishing speed of 280 presses per minute, many factories choose this press machine as their primary production equipment. The machine's technical parameters, such as slider distance, pressing pointer, pressure, etc., are displayed on a digital screen. The main screen also displays device production data. When the machine has a fault, the screen also displays a fault code....

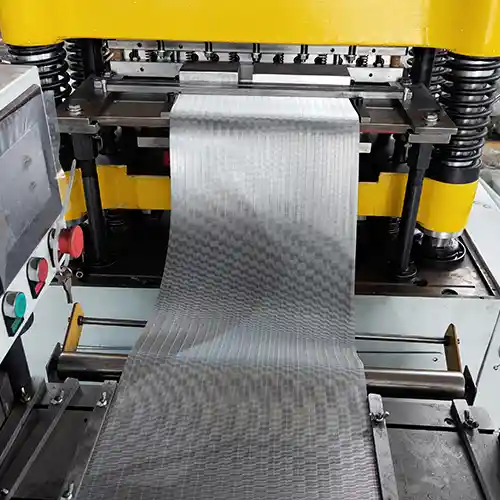

Fin cutting machine | Automatic Fin Making Forming Machine

fin cutting machine outline The servo motor-driven fin cutting machine has very high accuracy and stability. It uses a servo motor as the driving source, enabling precise motion control, and ensuring consistency and stability in cutting length. At the same time, the efficiency and stability of servo motors are also very suitable for cutting work that requires high accuracy and speed. It cooperates with our fin-making machine to achieve unattended, fully automated production ITEMDATAmachine namecutting machineDrive motorservo motorTouch screen7 in...

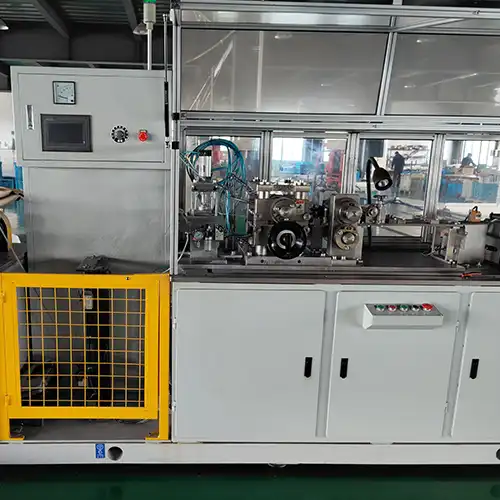

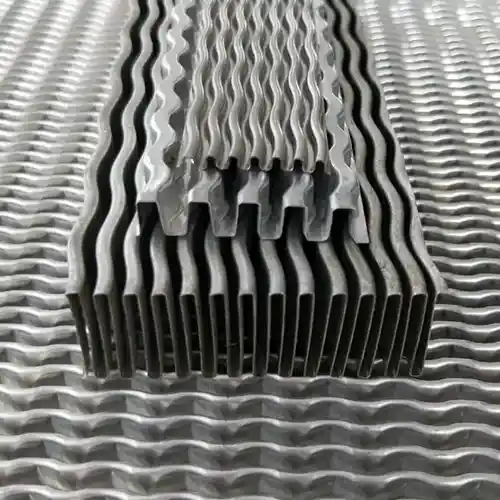

Special Fin Machine making aluminum heat exchangers

Machine outline The Special Fin Machine is a machine specially designed for making radiators and evaporators and heat exchangers, It's already one of the best and smartest devices on the market. The significant features of this device include the following: 1, Four columns are installed with cylinder liners to prevent wear These cylinder liners absorb all the load and wear of the equipment during use, and the longitude and latitude of the four columns above are consistent, It has a fully automatic hydraulic oil lubrication device, making the equipment more...

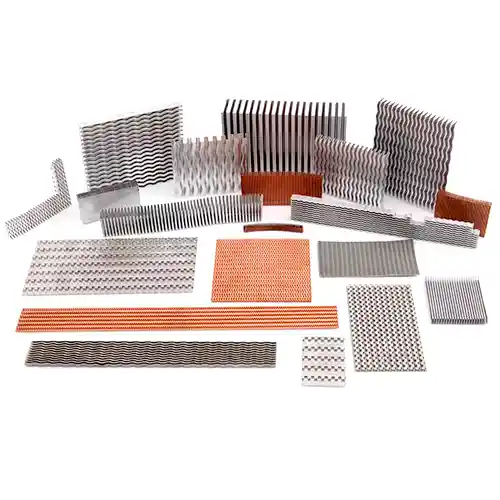

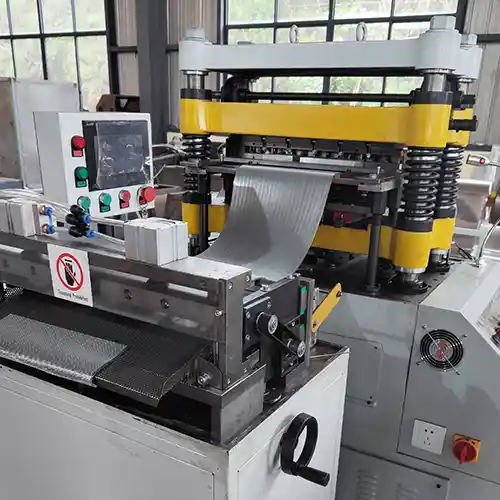

Heat exchanger fin machine supplier in China

Machine outline A heat exchanger fin machine is a device for producing cooling fins. It can also manufacture metal materials such as iron foil, copper foil, stainless steel foil, and titanium alloy foil. It plays an essential role in the manufacturing of plate and bar type heat exchangers. this machine can produce fins of various shapes and achieve an unmanned production mode. This machine consists of a continuous pressing production machine, feeding device, automatic cutting device, etc. Technical parameter ITEM DATAcertificateCEWorking Size350/450mmfin ty...
