Tube expander machine Supplier in China

Product Description This tube expander machine produces condensers and industrial heat exchangers. We have 16 years of experience in this field and are committing to providing customers with the best solutions and satisfactory pipe expanders. This machine can expand copper, aluminum, and stainless steel tubes. Its primary function is to enlarge the metal tube and make it close contact with the fins, thereby achieving efficient heat dissipation capability. Application scope of tube expander machine The device has a wide range of applications and can be ...

Fin press line for Heat exchanger

Product Description This Fin press line is C-type stamping equipment for high-speed production of heat exchanger fin parts. It comprises a material feeder, stamping machine and mold, fin storage device, and other parts. This device's pneumatic clutch flywheel controls it to achieve high-speed production and smooth operation. Its fastest production speed can reach 280 punches per minute. At the same time, the high-speed fin press has an automated production mode. In this mode, engineers set the fins' length, width, and quantity. When the production requirements ar...

Hairpin bender machine for copper coil tube

Hairpin bender machine outline The Hairpin bender machine is a device suitable for use in heat exchanger factories, mainly used to bend copper coils into a U-shape. This type of machine is crucial for the production and quality of heat exchangers. working principle The working principle of the Hairpin bender machine is to manually feed the copper tube into the bending mold, and the bending machine will bend the copper tube into the desired shape. Machines typically have multiple workstations and can bend multiple copper pipes at once. Technical paramet...

Fin press die for condenser aluminum foil and copper foil

Overview The Fin press die is a type of mold used for the high-speed production of large quantities of identical parts. It is usually composed of multiple independent small molds, which can achieve multiple different functions during one pressing process of the stamping machine, such as automatic feeding, opening, bending, cutting, etc This type of fin press die has a wide range of applications, especially for industrial heat exchangers and commercial condensers. The flexible arrangement of holes in this mold produces different geometric layouts, and the maximum...

Radiator fin making machine for sale

The Radiator fin-making machine is specifically designed to produce radiator fins.This fin machine plays a vital role in the manufacturing process of radiators for automobile and truck engines because it can produce fins for radiators, as well as fins for condensers, intercoolers, and evaporators. Working principle The working principle of a radiator fin machine is to roll metal foil into the desired fin shape through a high-speed rotating blade. Machines typically have a series of rotating blade rollers, each corresponding to the shape of a radiator fin. When the metal foil ma...

Fin press machine Fully automatic production line

Machine Overview The fin press machine is an efficient production equipment mainly uses for the automated manufacturing of parts for heat exchangers, air conditioners, and refrigerators. With an astonishing speed of 280 presses per minute, many factories choose this press machine as their primary production equipment. The machine's technical parameters, such as slider distance, pressing pointer, pressure, etc., are displayed on a digital screen. The main screen also displays device production data. When the machine has a fault, the screen also displays a fault code....

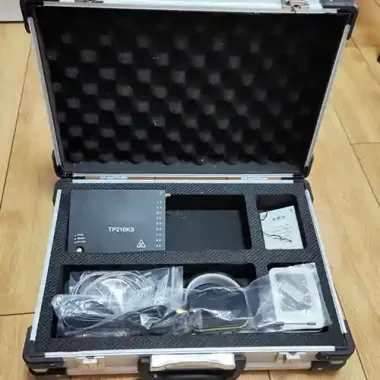

Industrial oven temperature recorder for sell

This industrial oven temperature recorder is a temperature recording instrument specifically designed for industrial high-temperature furnaces. It is widely used in spray coating production lines, steelmaking, ceramic kilns, aluminum brazing furnaces, and other fields, providing more accurate and reliable temperature data for industrial production, and providing reliable guarantees for high-quality production main features The main feature of the industrial oven temperature recorder is its powerful data acquisition and recording function. It can collect th...

Fin cutting machine | Automatic Fin Making Forming Machine

fin cutting machine outline The servo motor-driven fin cutting machine has very high accuracy and stability. It uses a servo motor as the driving source, enabling precise motion control, and ensuring consistency and stability in cutting length. At the same time, the efficiency and stability of servo motors are also very suitable for cutting work that requires high accuracy and speed. It cooperates with our fin-making machine to achieve unattended, fully automated production ITEMDATAmachine namecutting machineDrive motorservo motorTouch screen7 in...

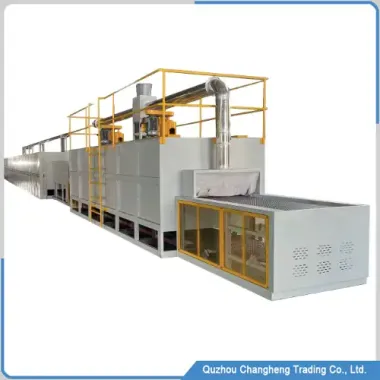

Brazing furnace making aluminum radiators and condenser

Product Introduction This unique brazing furnace is suitable for producing aluminum radiators and condensers for cars and trucks, and it is currently one of the most popular aluminum brazing equipment. It uses nocolok spraying and nitrogen protection technology, which can achieve large-scale production. Typically, it can produce 120 to 300 aluminum cores per hour. The brazing furnace can automatically complete the steps of spraying, drying, welding, and cooling for aluminum cores, and workers only need to place the aluminum cores flat on the conveyor chain. Al...

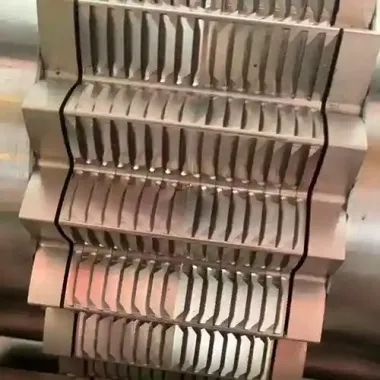

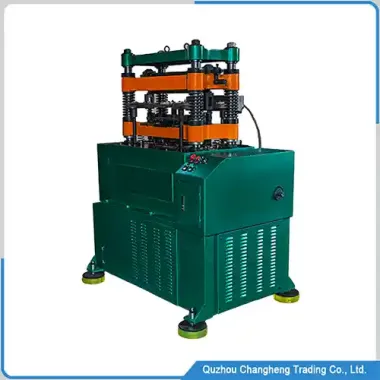

Special Fin Machine making aluminum heat exchangers

Machine outline The Special Fin Machine is a machine specially designed for making radiators and evaporators and heat exchangers, It's already one of the best and smartest devices on the market. The significant features of this device include the following: 1, Four columns are installed with cylinder liners to prevent wear These cylinder liners absorb all the load and wear of the equipment during use, and the longitude and latitude of the four columns above are consistent, It has a fully automatic hydraulic oil lubrication device, making the equipment more...

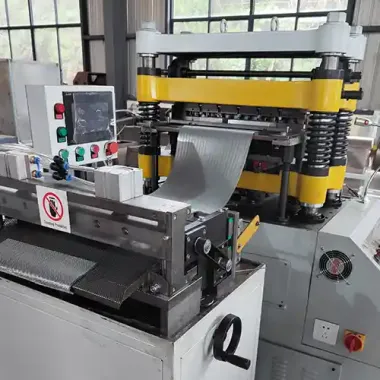

Heat exchanger fin machine supplier in China

Machine outline A heat exchanger fin machine is a device for producing cooling fins. It can also manufacture metal materials such as iron foil, copper foil, stainless steel foil, and titanium alloy foil. It plays an essential role in the manufacturing of plate and bar type heat exchangers. this machine can produce fins of various shapes and achieve an unmanned production mode. This machine consists of a continuous pressing production machine, feeding device, automatic cutting device, etc. Technical parameter ITEM DATAcertificateCEWorking Size350/450mmfin ty...

CAB brazing furnace of New technology

Product Description This is an aluminum CAB brazing furnace manufactured with the latest technology. The MAFU of the furnace is made of the highest quality SS316L stainless steel material with a thickness of 10mm. The gaps on both sides are welding using argon arc welding technology, which maintains stability during high-temperature use. The MAFU brazing furnace has a nitrogen delivery pipeline inside, which can protect the product from oxidation during the production process. It is very suitable for large-scale production of aluminum parts, such as aluminum radiato...

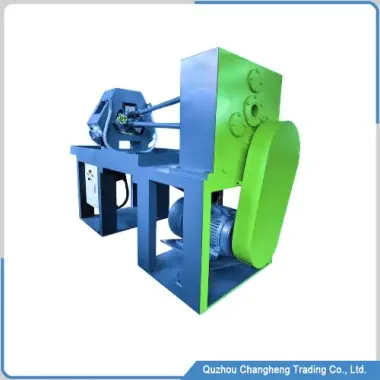

Tube Finning Machine Manufacturer From China

Machine Outline This tube finning machine is suitable for producing two different metal finned tubes. It produces pipes with different pitches by replacing the blades of the extrusion roller. We have upgraded the extrusion roller structure compared to the previous generation of machines to make blade replacement easier and improve blade accuracy. We have added a scale to the machine's adjustment position to produce different pipe diameters. Now, we can visually adjust the size to improve work efficiency further. The tube finning machine has three rollers that ...

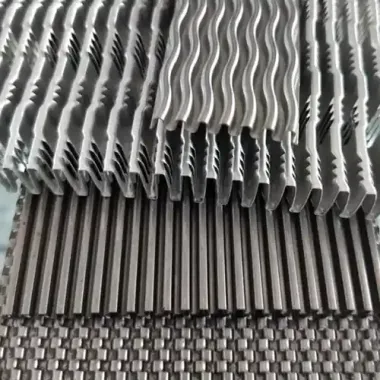

Flat Fin Machine for plate and bar heat exchanger

Machine outline The Flat fin machine produces cooling fins for plate and bar heat exchangers. This equipment is similar to the piston's working type and continuously produces work up and down. The sliding bushing has an automatic lubrication device. The excess lubricating oil will automatically flow to the oil sump. This machine is a complete production line consisting of a raw material feeder, a raw material lubrication device, a flat fin molding die, an automatic cutting machine, etc. Among them, the cutting machine is by a servo motor, which can accurately contro...

Furnace brazing for aluminum radiator

What is furnace brazing? Furnace brazing is a modern industrial production process that mainly involves welding two or more aluminum parts together. It is a high-temperature brazing process that uses nitrogen protection. This process is commonly used in the automotive and marine industries, such as radiators for automotive engines and condensers for air conditioning systems, where brazing is a piece of critical equipment. In other industries, this equipment has good applications if multiple aluminum parts need to be brazed together. Table of contentsWhat is furnace brazing?...
